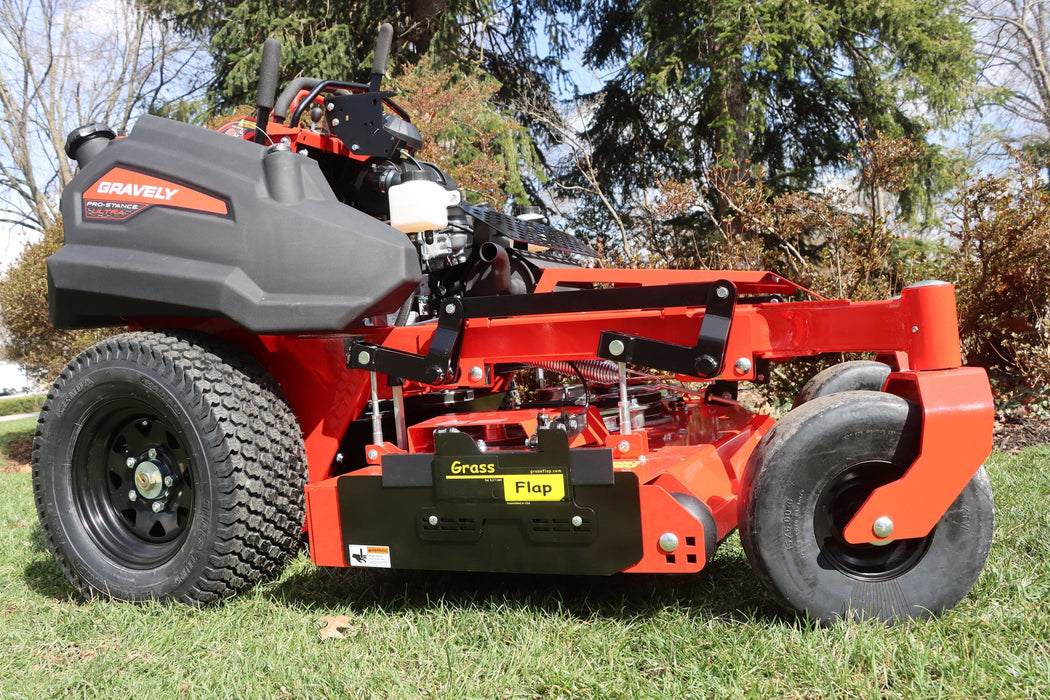

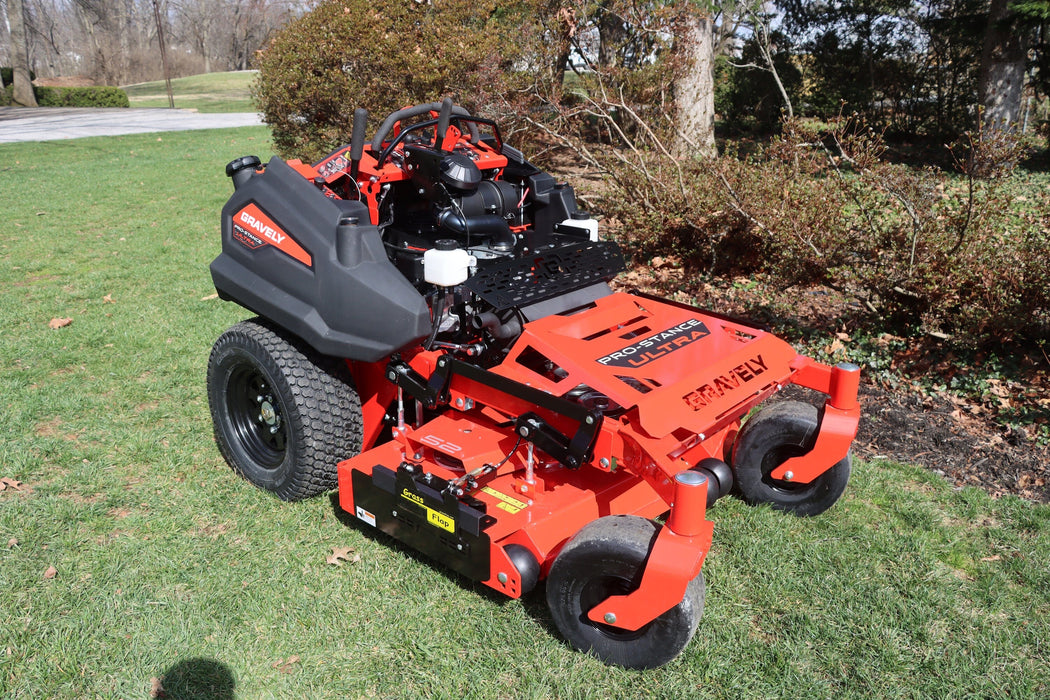

44UM50-H5L-B36 GrassFlap® brand chute blocker Direct Bolt with Steel Blocker Plate

GrassFlap® brand chute blocker Direct Bolt with Steel Blocker Plate and H5L Hand Lever Includes No-Drill Mount 1261 and Hand Lever Mount 1300

The GrassFlap® brand chute blocker is the ideal OCDC, operator controlled discharge chute. The chute blocker plate opens a full 180 degrees and completely clears the edge of the mower to allow the mower to fit in those tight spaces.

 Features

• Opens 180 degrees to completely clears edge of deck
• Most Drop-on baggers will fit with GrassFlap® brand chute blocker installed
• Operator-controlled operation — Open and close the discharge from the mower's control area
• 180° opening — Completely clears the edge of the mower deck
• Direct bolt-on installation — Uses existing factory holes to mount

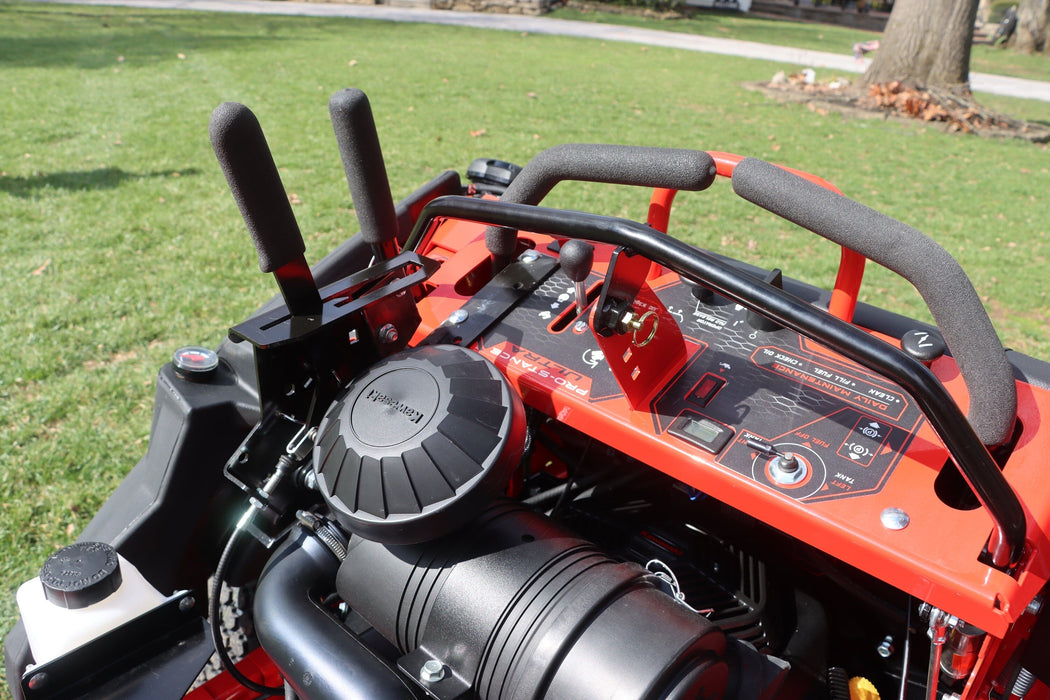

• Compact hand-lever design — Keeps operation within easy reach
• Bagging compatible — Most drop-on baggers will fit with the GrassFlap® installed

What's Included

The kit includes everything needed to install and operate the GrassFlap® brand chute blocker.

This includes:

• All steel flap assembly to mount to discharge opening

  • Hinge Plate 1263 (10-99-111)
  • Blocker Plate 1265 (10-99-107)
  • Flap Mount 1062 (10-99-40)
  • Spring Mount 1057 (10-99-31)
  • Bushing Kit for Flap Hex (10-99-52)

• H5L Hand Lever (10-99-85)

• 50" cable (10-99-08)
• No-Drill Mount 1261 (A73)

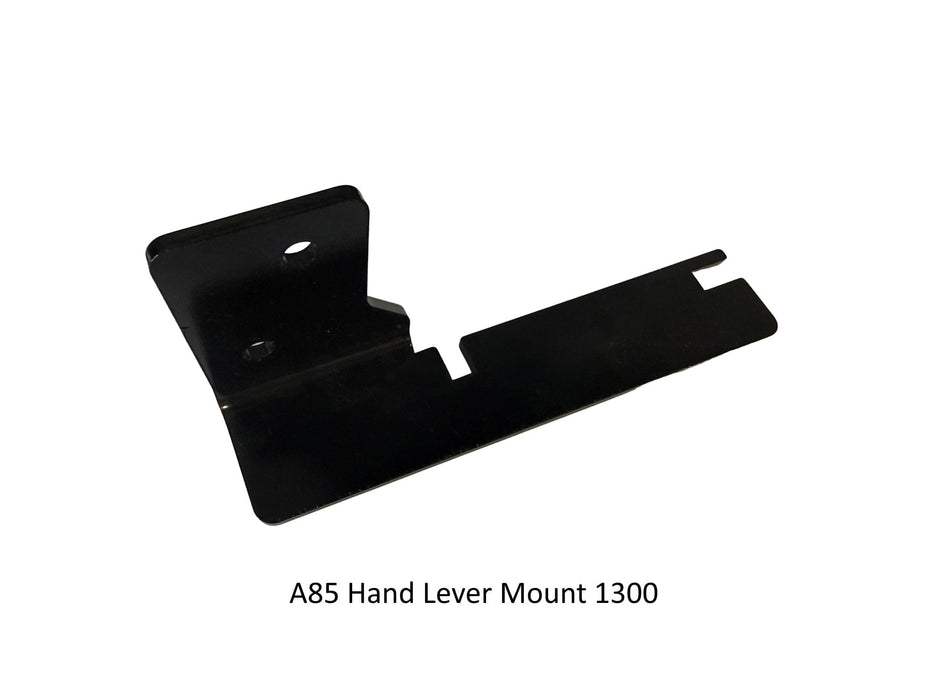

• Hand Lever Mount 1300 (A85)
• Mounting hardware for installation

Installation

Direct bolt to existing holes on deck and operator tower - no drilling required.

44UM GrassFlap® Installation Guide

A73 Installation Guide
