44P70-6-A31 GrassFlap® brand chute blocker with 6 Pedal Includes Toro Proline Pedal Mount
Low Profile Heavy-Duty GrassFlap® brand chute blocker with 6 Pedal Includes Toro Proline Pedal Mount.
The GrassFlap® brand chute blocker is the ideal OCDC, operator controlled discharge chute. The foot-operation allows the user to close the discharge chute at any time, any place without taking their hands off the mower€™s controls. The chute blocker plate opens a full 180 degrees and completely clears the edge of the mower to allow the mower to fit in those tight spaces. The GrassFlap® brand chute blocker fits most zero-turn mowers.
To verify this model fits your specific mower, please use the GrassFlap® Lookup
Features
- Hands-Free operation
- Opens 180 degrees to completely clears edge of deck
- No handles or levers to get hung on limbs and shrubs
- Most Drop-on baggers will fit with GrassFlap® brand chute blocker installed
What's Included
The kit includes everything needed to install and operate the GrassFlap® brand chute blocker.
This includes:

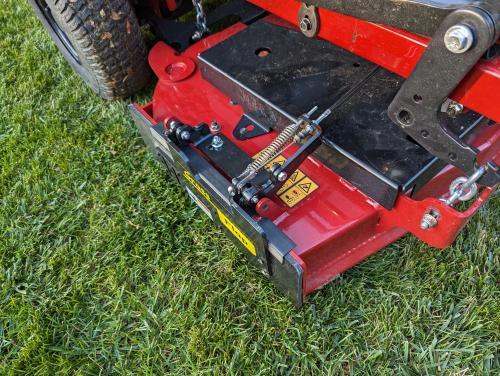

- 2-piece steel and heavy-duty plastic flap assembly to mount to discharge opening
- 6 Pedal (10-99-13)
- 70" cable (10-99-07)

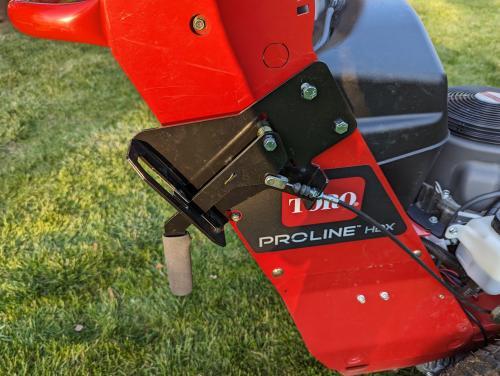

- Toro Proline Pedal Mount (A31)
- Mounting hardware for installation
The 6 Pedal has the cable exit out the rear of the pedal.
Installation
Assembly is required, including drilling holes in mower deck and operator foot deck to install. Modification to blocker plate size and shape may be required for best fit on some mowers.
Bought this kit (44P70-6-A31 Low Profile Heavy-Duty GrassFlap with RE Pedal Includes Toro Proline Pedal Mount) and installed the flap first. Started looking at installing the foot pedal and decided that I didn't like the location since I thought I'd kick it with my big feet while walking. I also wanted to be able to run with the chute partially open. I ended up ordering the 10-99-68 H3L Hand Lever (Upgrade kit for $35) and received it in only 2 days. It's labelled as a left hand lever, but it comes with long and short spacers. I first looked at using the long spacers and mounting the lever on top (in the normal orientation), but the existing holes in the plate conflicted with some stuff, so I would have had to drill new holes in the plate too. I decided to mount it in reverse and actually like how it's out of the way, but still easily accessible. I've mowed once with hit and opened/closed the chute with each pass in order to keep pushing the leaves in one direction. Worked great! Only reason for 4 stars is that I now have an extra pedal and mount that I don't need. Would recommend adding the lever and flap as a kit option to the GrassFlap lookup results.
Bought this kit (44P70-6-A31 Low Profile Heavy-Duty GrassFlap with RE Pedal Includes Toro Proline Pedal Mount) and installed the flap first. Started looking at installing the foot pedal and decided that I didn't like the location since I thought I'd kick it with my big feet while walking. I also wanted to be able to run with the chute partially open. I ended up ordering the 10-99-68 H3L Hand Lever (Upgrade kit for $35) and received it in only 2 days. It's labelled as a left hand lever, but it comes with long and short spacers. I first looked at using the long spacers and mounting the lever on top (in the normal orientation), but the existing holes in the plate conflicted with some stuff, so I would have had to drill new holes in the plate too. I decided to mount it in reverse and actually like how it's out of the way, but still easily accessible. I've mowed once with hit and opened/closed the chute with each pass in order to keep pushing the leaves in one direction. Worked great!
