44WM70-5D-A37 GrassFlap® brand chute blocker with Steel Blocker Plate and 5D pedal Includes Wright No-Drill Mount for 2019 or older
GrassFlap® brand chute blocker with Steel Blocker Plate and 5D pedal Includes Wright No-Drill Mount for 2019 or older
The GrassFlap® brand chute blocker is the ideal OCDC, operator controlled discharge chute. The foot-operation allows the user to close the discharge chute at any time, any place without taking their hands off the mower€™s controls. The chute blocker plate opens a full 180 degrees and completely clears the edge of the mower to allow the mower to fit in those tight spaces.
CHECK THE DECK RIB DESIGN BEFORE ORDERING. REQUIRES AEROCORE DECK WITH SCALLOPED RIB FOR DIRECT BOLT. WILL WORK ON STANDER B MODELS WITH 48" AND LARGER DECKS.
OPTION: Use on AEROCORE DECK WITH STRAIGHT RIB BY DRILLING HOLE IN RIB. The benefit is you eliminate drilling holes in the deck and it provides a consistent location
To verify this model fits your specific mower, please use the GrassFlap® Lookup
Features
- Hands-Free operation
- All steel blocker plate
- Direct bolt-on for mowers with scalloped rib
- Opens 180 degrees to completely clears edge of deck
- No handles or levers to get hung on limbs and shrubs
- Most Drop-on baggers will fit with GrassFlap® brand chute blocker installed
What's Included
The kit includes everything needed to install and operate the GrassFlap® brand chute blocker.
This includes:
- All steel flap assembly to mount to discharge opening
- 5D pedal (10-99-79)
- 70" cable (10-99-07)
- Wright no-drill mount (A4)

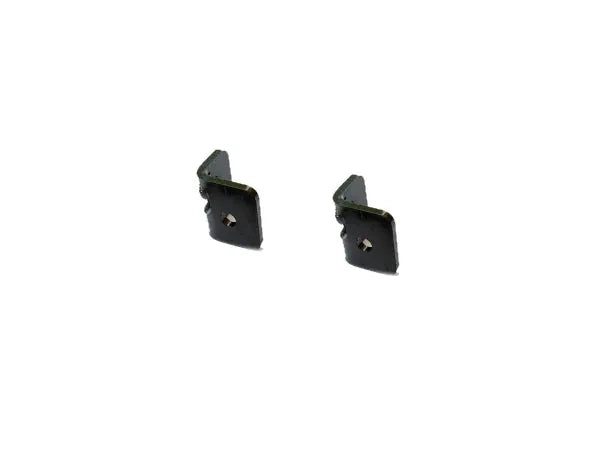

- Short angles for no-drill mount (A37)
- Mounting hardware for installation
The 5D Pedal has the cable exit the pedal parallel to mounting surface.
Installation

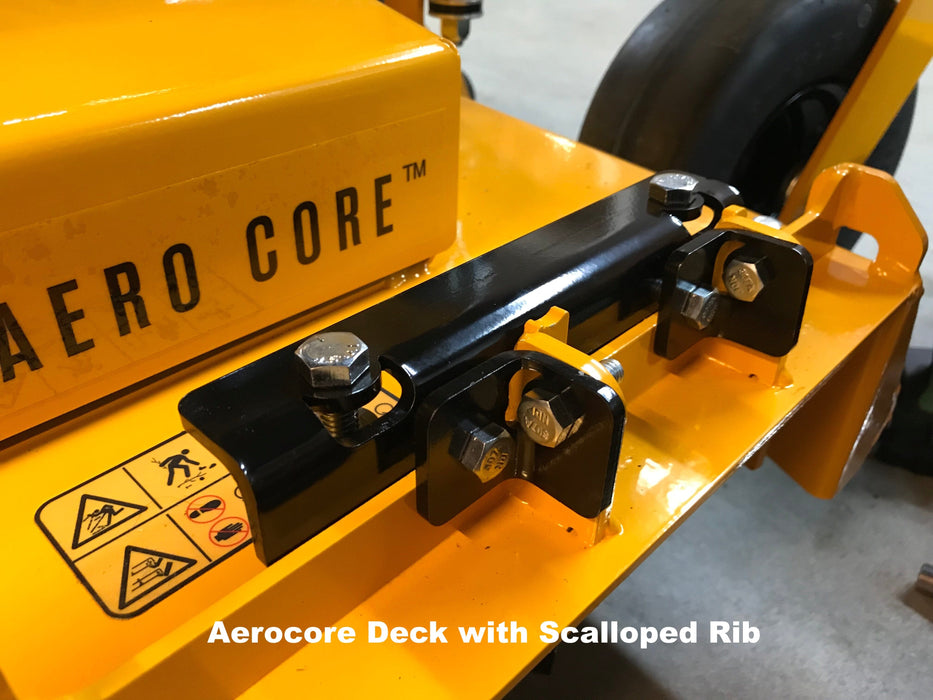

Direct bolt to existing holes on deck and foot platform - no drilling required for aero-core deck with scalloped rib.
NO-DRILL MOUNT WITH SHORT ANGLE INSTALLATION GUIDE

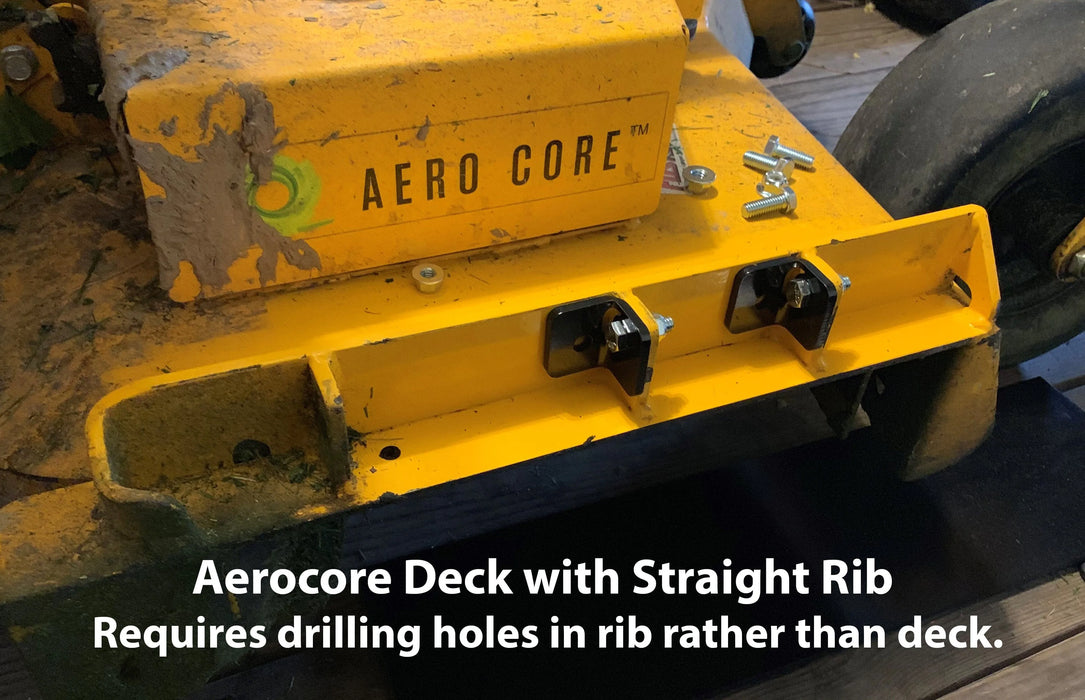

Aerocore deck with straight rib (shown below) requires drilling holes in rib rather than deck.
Very Easy to install. And very easy to use.
Esxelent I Recomend it.
$400 dollar part but yet cheaped out on the pin which connects the cable flap and snapped off on the first property. Two zip ties hold up way better
So I was split between give a 4 or 5 star review. The grassflap itself is amazing. However, my issue came with installation. It took me 3 and 1/2 hours to install it mainly because there was missing hardware that I had to go get the right bolt and nut for. Also, instructions were not very clear for all mowers. I had a wright standard b that I was getting the grass flat for but the instructions and table routing were not very clear because they were based off of it x model and ZK model. I was just reassembling and disassembling multiple times to get it right. However, it works great now that I've got it fully installed and am pleased with the results
This is my 4th grassflap and this is the first one that i can not give a perfect 5 stars . The cable is to long! You could easily take 20 inches off the cable length and it would make a much cleaner install. Also the foot pedal makes no sense and is awkward to use on the stander x . I would like to see a t shaped pedal that way it would be easier to use both feet . Beyond those 2 complaints the fit is perfect, build quality and materials are top notch .
Very well built product. Appreciated the no drill brackets. Does its job beautifully.
Would def buy for future mowers, love it on my stand on and will def upgrade my hand operated chute to a grass flap! Worth the money
