44SWM70-5D-A37 GrassFlap® brand chute blocker with 5D pedal Includes Wright No-Drill Mount for 2019 or older
GrassFlap® brand chute blocker with 5D pedal Includes Wright No-Drill Mount for 2019 or older

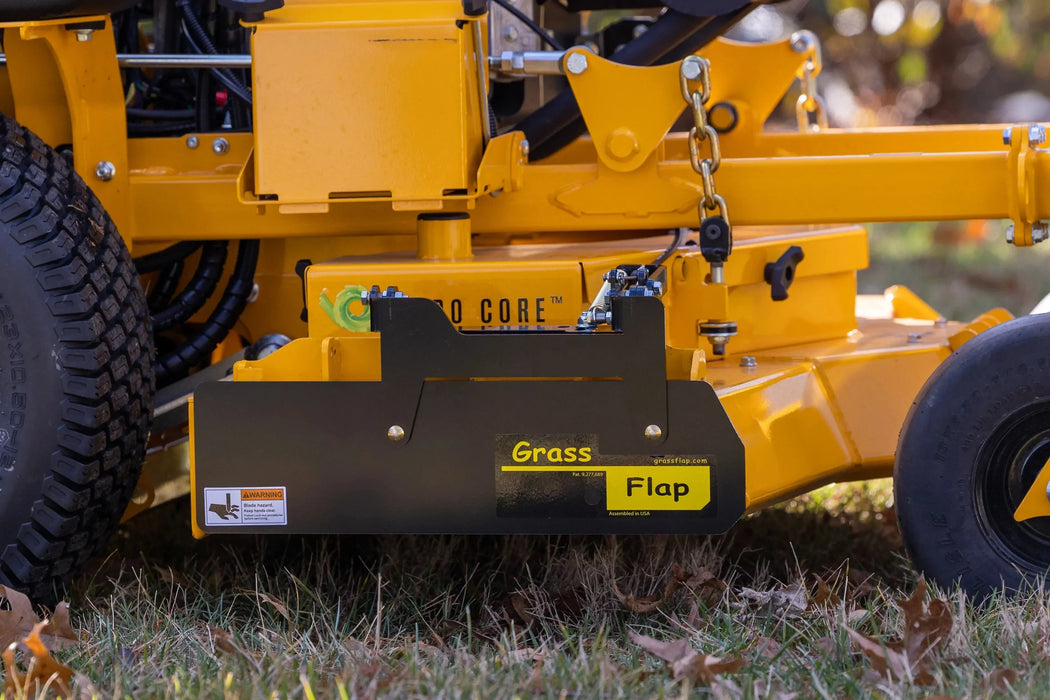

The GrassFlap® brand chute blocker is the ideal OCDC, operator controlled discharge chute. The foot-operation allows the user to close the discharge chute at any time, any place without taking their hands off the mower€™s controls.
CHECK THE DECK RIB DESIGN BEFORE ORDERING. REQUIRES AEROCORE DECK WITH SCALLOPED RIB FOR DIRECT BOLT. WILL WORK ON STANDER B MODELS WITH 48" AND LARGER DECKS.
OPTION: Use on AEROCORE DECK WITH STRAIGHT RIB BY DRILLING HOLE IN RIB. The benefit is you eliminate drilling holes in the deck and it provides a consistent location
To verify this model fits your specific mower, please use the GrassFlap® Lookup
Features
- Hands-Free operation
- Direct bolt-on for mowers with scalloped rib
- No handles or levers to get hung on limbs and shrubs
- Most Drop-on baggers will fit with GrassFlap® brand chute blocker installed
What's Included
The kit includes everything needed to install and operate the GrassFlap® brand chute blocker.
This includes:
- All steel flap assembly to mount to discharge opening
- 5D pedal (10-99-79)
- 70" cable (10-99-07)
- Wright no-drill mount (A4)

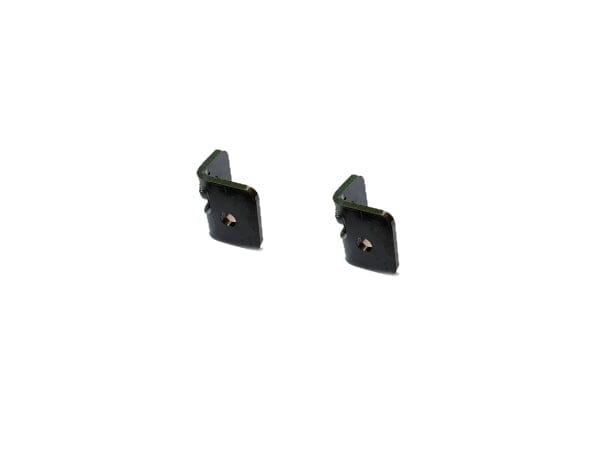

- Short angles for no-drill mount (A37)
- Flap Open Stop Tab (A25)
- Mounting hardware for installation
The 5D Pedal has the cable exit the pedal parallel to mounting surface.
Installation

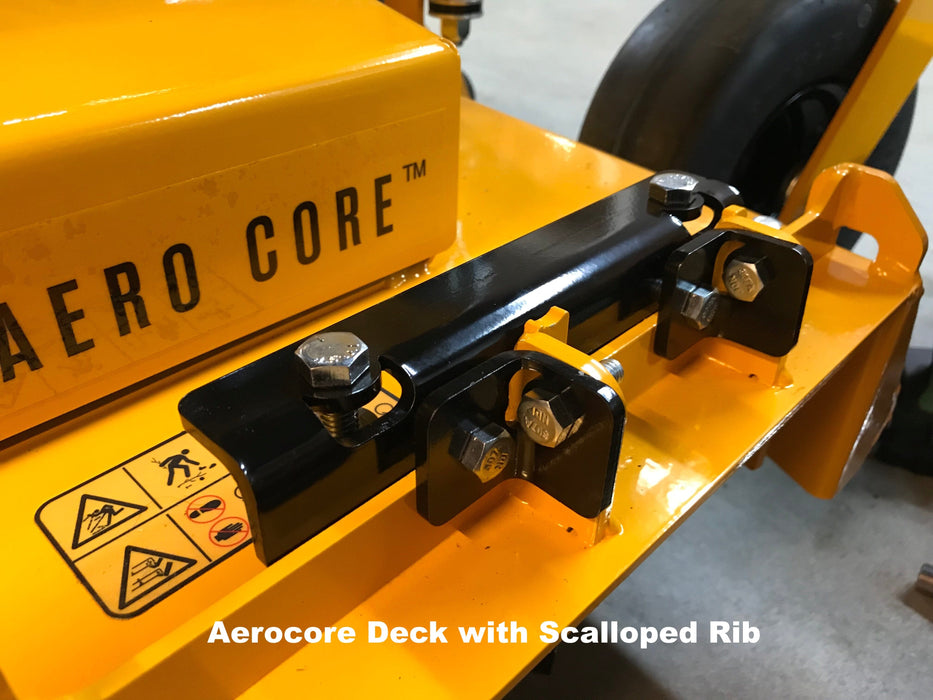

Direct bolt to existing holes on deck and foot platform - no drilling required for aero-core deck with scalloped rib.
NO-DRILL MOUNT WITH SHORT ANGLE INSTALLATION GUIDE

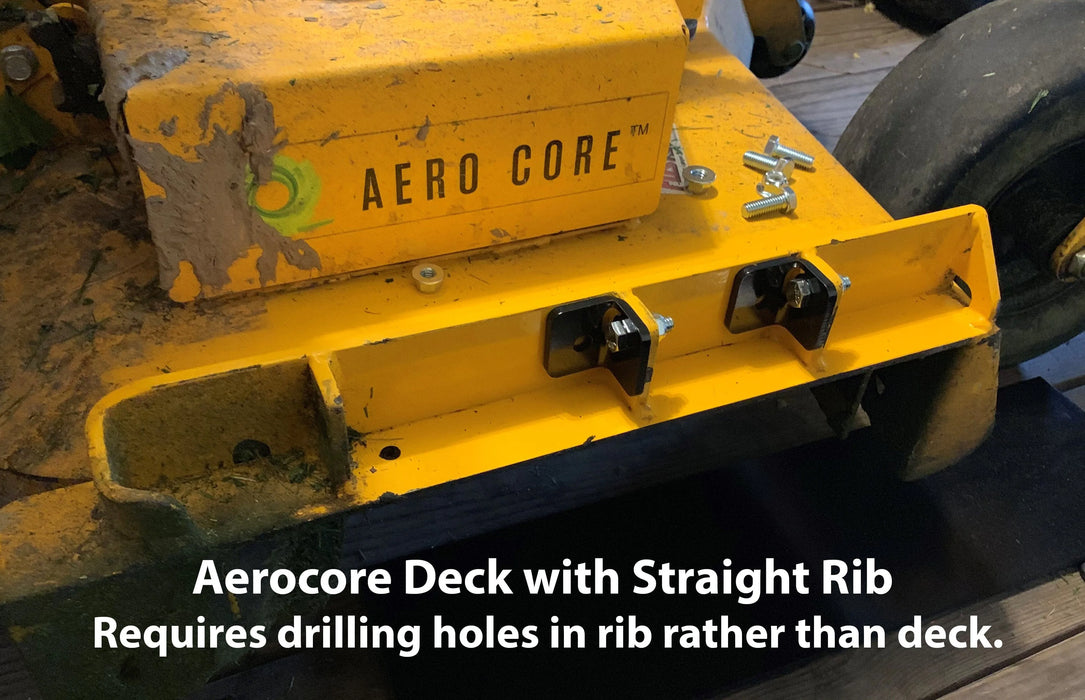

Aerocore deck with straight rib (shown below) requires drilling holes in rib rather than deck.
