51FM70-5 GrassFlap Direct Bolt with SE Pedal and Pedal Mount Inline
GrassFlap Direct Bolt for Wright Stander B 32 and 36 inch decks.
This unit is a direct fit for the Wright stander B 32 inch and 36 inch decks. The GrassFlap is the ideal OCDC, operator controlled discharge chute. The foot-operation allows the user to close the discharge chute at any time, any place without taking their hands off the mower’s controls. The chute blocker plate opens a full 180 degrees and completely clears the edge of the mower to allow the mower to fit in those tight spaces. The GrassFlap fits most zero-turn mowers.
Features
- Hands-Free operation
- Opens 180 degrees to completely clears edge of deck
- No handles or levers to get hung on limbs and shrubs
- Most Drop-on baggers will fit with GrassFlap installed
What's Included

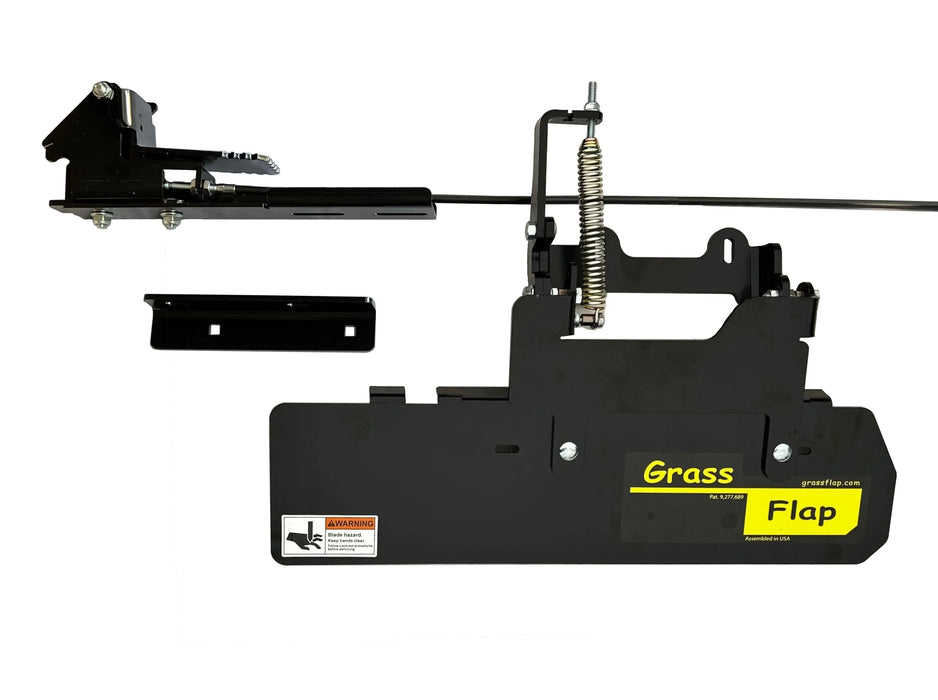

The kit includes everything needed to install and operate the GrassFlap.
This includes:
- All steel flap assembly to mount to discharge opening
- SE pedal (10-99-35) with Pedal Mount Inline (11-82-11)
- 70" cable (10-99-07)
- No-Drill Mount 1102 (11-82-50)
- Mounting hardware for installation
The SE Pedal with pedal mount inline has the cable exit the pedal parallel to mounting.
Installation
Direct bolt to existing holes on deck and foot platform - no drilling required.
Videos below show installation with previous GrassFlap version consisting of a steel hinge plate with a plastic blocker plate. Basics of installation remains the same.
GrassFlap Installed on Wright Stander B with 32 Inch Deck
GrassFlap Installed on Wright Stander B with 36 Inch Deck
