41W50-5-A35 GrassFlap™ brand chute blocker with SE Pedal Includes Wright No-Drill Mount for 2019 or older

Low Profile Heavy-Duty GrassFlap™ brand chute blocker with SE Pedal Includes Wright No-Drill Mount for Aerocore decks for mowers 2019 or older.

The GrassFlap™ brand chute blocker is the ideal OCDC, operator controlled discharge chute. The foot-operation allows the user to close the discharge chute at any time, any place without taking their hands off the mower’s controls. The chute blocker plate opens a full 180 degrees and completely clears the edge of the mower to allow the mower to fit in those tight spaces. The GrassFlap™ brand chute blocker fits most zero-turn mowers.

CHECK THE DECK RIB DESIGN BEFORE ORDERING. REQUIRES AEROCORE DECK WITH SCALLOPED RIB.  WILL WORK ON STANDER B MODELS WITH 48" AND LARGER DECKS.

OPTION: Use on AEROCORE DECK WITH STRAIGHT RIB BY DRILLING HOLE IN RIB. The benefit is you eliminate drilling holes in the deck and it provides a consistent location

 Features

• Hands-Free operation
• Direct bolt-on at discharge using existing factory tabs on decks with scalloped rib (straight rib requires drilling in rib)
• Opens 180 degrees to completely clears edge of deck
• No handles or levers to get hung on limbs and shrubs
• Most Drop-on baggers will fit with GrassFlap™ brand chute blocker installed

What's Included

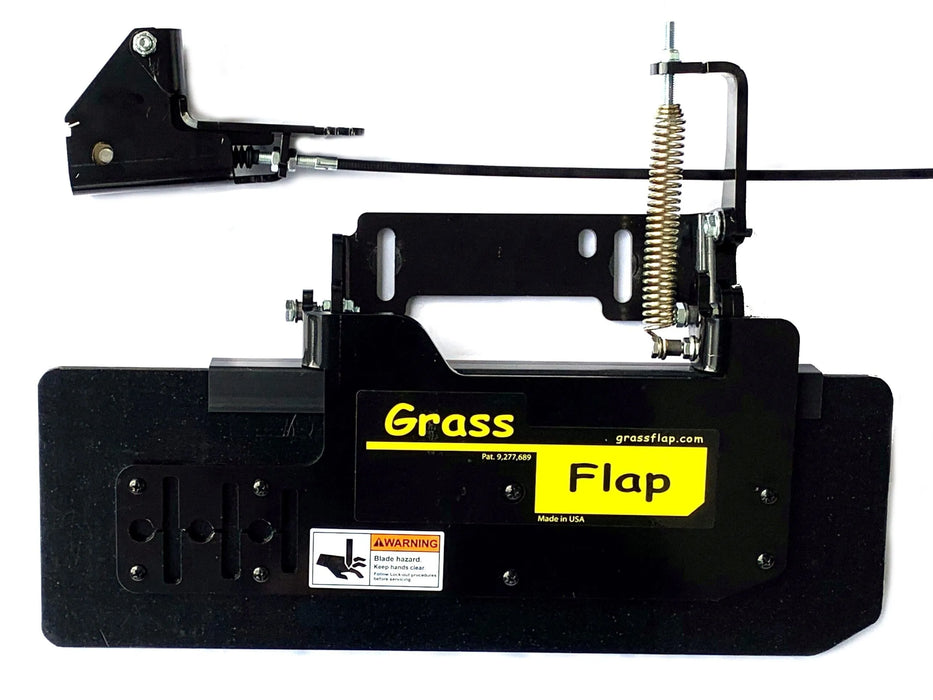

The kit includes everything needed to install and operate the GrassFlap™ brand chute blocker. This includes the a flap that mounts to the discharge opening, the SE Pedal, a 50 inch cable, Wright no-drill mount and all mounting hardware needed for installing.

The SE Pedal has the cable exit the pedal parallel to mounting surface.

Installation

Assembly is required, including drilling holes on operator foot deck.  Modification to blocker plate size and shape may be required for best fit on some mowers.

Wright No-Drill Mount installation

Accessories

Accessories are optional hardware that can make installation easier or eliminate the need to drill your deck. Available for limited number of brands. The link below will take you to the page showing the accessories.   Accessories can also be found under Shop>Accessories.
