51FM50-H5L-A36 GrassFlap™ brand chute blocker with Steel Blocker Plate and H5L Hand Lever Includes No-Drill Mount and Hand Lever Angle Mount
GrassFlap™ brand chute blocker with Steel Blocker Plate and H5L Hand Lever for Wright Stander B 32" and 36" decks Includes No-Drill Mount and Hand Lever Angle Mount
This unit is a direct fit for the Wright stander B 32 inch and 36 inch decks. The GrassFlap™ brand chute blocker is the ideal OCDC, operator controlled discharge chute. The foot-operation allows the user to close the discharge chute at any time, any place without taking their hands off the mower’s controls. The chute blocker plate opens a full 180 degrees and completely clears the edge of the mower to allow the mower to fit in those tight spaces. The GrassFlap™ brand chute blocker fits most zero-turn mowers.
Features
- Opens 180 degrees to completely clears edge of deck
- All steel blocker plate
- Most Drop-on baggers will fit with GrassFlap™ brand chute blocker installed
What's Included
The kit includes everything needed to install and operate the GrassFlap™ brand chute blocker.
This includes:
- All steel flap assembly to mount to discharge opening
- H5L Hand Lever (10-99-59)
- 50" cable (10-99-08)
- No-Drill Mount 1102 (11-82-50)
- Hand Lever Angle Mount (11-82-36)
- Mounting hardware for installation
Installation
Some basic assembly is required. Attach pre-cut blocker plate to hinge plate, bolt no-drill to discharge and bolt flap assembly to no-drill. Bolt pedal to foot deck. Route and connect cable. No cutting or drilling required

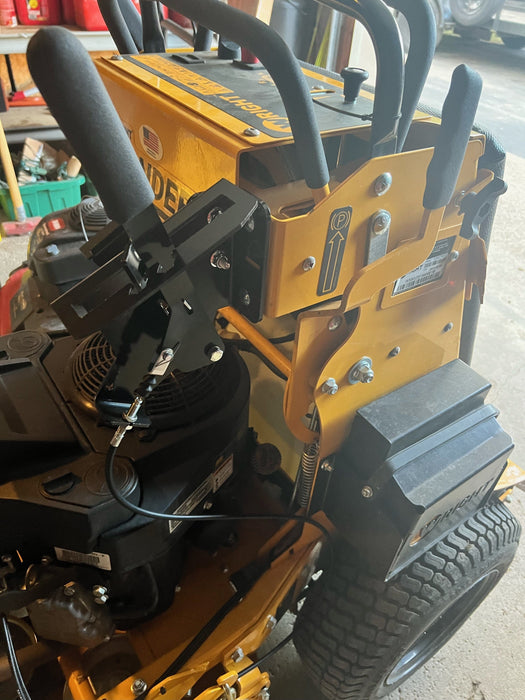

GrassFlap™ brand chute blocker Installed on Wright Stander B with 32 Inch Deck

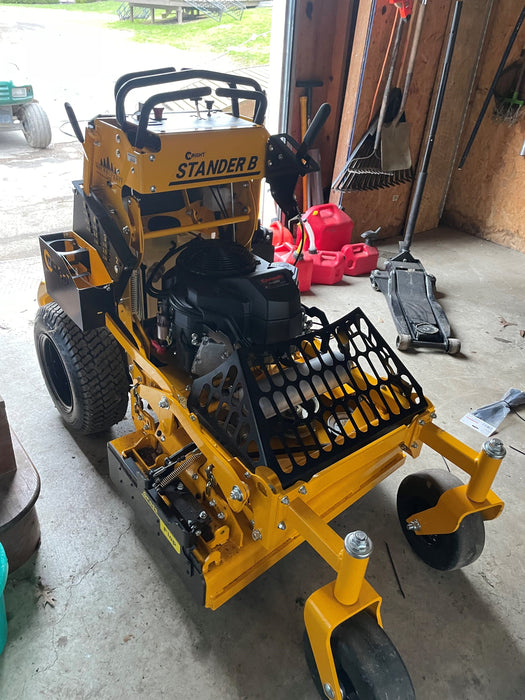

GrassFlap™ brand chute blocker Installed on Wright Stander B with 36 Inch Deck
